SINOLIFT BSL Series Semi-electric Self Loading Stacker

Name: SINOLIFT BSL Series Semielectric Self Loading Stacker
Brand: SINOLIFT
Price: 1280 USD

Brand Name : SINOLIFT

Model Number : BSL

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : $1280-1680 1unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 units

Delivery Time : Negotiation

Packaging Details : Standard export packaging

Application : Industrial

Test Report : Provided

CE certificate : Provided

Packaging : Standard export packing

Power : Cooperated With Fortune 500,Competitive OEM factory,Company Industry Experience(17 Year),Full Customization

Minimum order quantity : 1 UNIT

Method of payment : L/C,D/P,D/A,T/T,Credit card,PayPal

The delivery period : Negotiation

Warranty : 1 Year

Contact Now

SINOLIFT BSL Series Semi-electric Self Loading Stacker

	Model		BSL-05/BSL-07							BSL-10
Performance	Maximum load capacity	kg	500/700	500/700	500/700	500/700	500/700	500/700	500	1000	1000	1000	1000	1000	1000	1000
	Load center	mm	450	450	450	450	450	450	450	450	450	450	450	450	450	450
	Weight (with battery)	kg	276/286	278/289	284/295	290/302	295/306	292/303	302	332.6	337	346	355	363	372	372
	Maximum lifting height	mm	800	900	1100	1300	1500	1600	1800	800	900	1100	1300	1500	1600	1800
	Lifting speed (without load)	mm/s	140	140	140	140	140	140	140	65	65	65	65	65	65	65
	Lifting speed (with load)	mm/s	135	135	135	135	135	135	135	35	35	35	35	35	35	35
	Lowered speed (without load)	mm/s	140	140	140	140	140	140	140	65	65	65	65	65	65	65
	Lowered speed (with load)	mm/s	145	145	145	145	145	145	145	35	35	35	35	35	35	35
Dimensions	Overall length of frame	mm	1578	1578	1578	1578	1578	1578	1578	1560	1560	1560	1560	1560	1560	1560
	Overall width of frame	mm	885	885	885	885	885	885	885	913	913	913	913	913	913	913
	Mast lowered height	mm	1095	1195	1395	1595	1795	1895	2156	1150	1250	1450	1650	1850	1950	2156
	Max height(mast lifted with backrest	mm	2360	2460	2660	2860	3060	3160	3360	2385	2485	2685	2885	3085	3185	3385
	Wheelbase	mm	832	832	832	832	832	832	832	845	845	845	845	845
	Fork length	mm	1180	1180	1180	1180	1180	1180	1180	1180	1180	1180	1180	1180	1180	1180
	Fork outside width	mm	565	565	565	565	565	565	565	580/626	580/626	580/626	580/626	580/626	580/626	580/626
	Fork inside width	mm	195	195	195	195	195	195	195	236	236	236	236	236	236	236
	Fork thickness	mm	60	60	60	60	60	60	60	70	70	70	70	70	70	70
	width of theoretical minimum aisle for right-angle stacking (1200x1000)	mm	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200	1200
	Min frounf height	mm	20	20	20	20	20	20	20	32	32	32	32	32	32	32
	Fork lowered height	mm	90	90	90	90	90	90	90	90	90	90	90	90	90	90
	Minimum turning radius	mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Tire	Front wheel	mm	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*51	80*51
	Hoist motor type	DC
	Rated output	kw	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Battery	Battery Type		Maintenance-free battery							Maintenance-free battery
	Voltage	V	12	12	12	12	12	12	12	12	12	12	12	12	12	12
	Capacity	AH	45	45	45	45	45	45	45	45	45	45	45	45	45	45

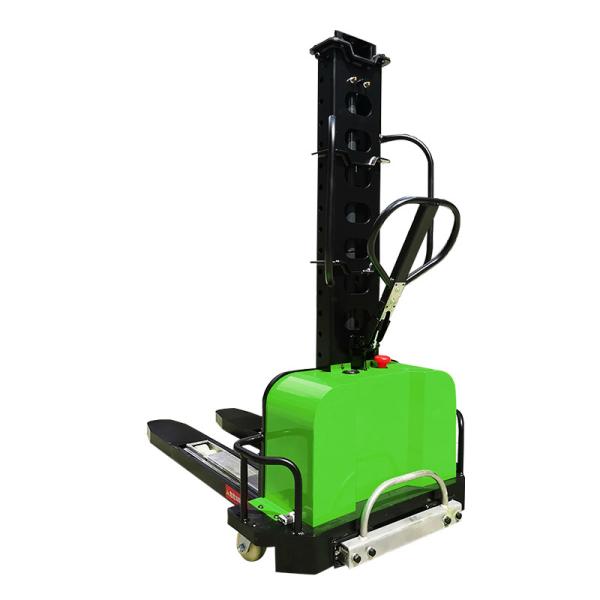

SINOLIFT BSL Series Semi-electric Self Loading Stacker Images
