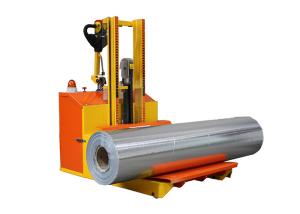

CDD1000-M700 Full Electric Roll Handling Trolley Full Electric Roll Lifter Load Capacity 1500Kg

Shanghai Sinolift Mechanical and Electrical Equipment Co., Ltd.
Contact Now

CDD1000-M700 Full Electric Roll Handling Trolley Full Electric Roll Lifter Load Capacity 1500Kg

Brand Name : Sinolift

Model Number : CDD

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : CDD1000-M700 Full Electric Roll Handling Trolley Full Electric Roll Lifter Load Capacity 1500Kg

Operator Type : Walkie

Load Capacity : 1000-1500Kg

Load Center : 465mm

Overall Dimension : 1388X1608X750mm

Wheelbase : 1245mm

Lifting Height : 1220mm

Lowered Height : 97mm

Traverse Motor : DC 1.0KW

Lifting Motor : 2.2KW

Battery Weight : 34kg

Service Weight (Include Battery) : 390Kg

Contact Now

Feature:

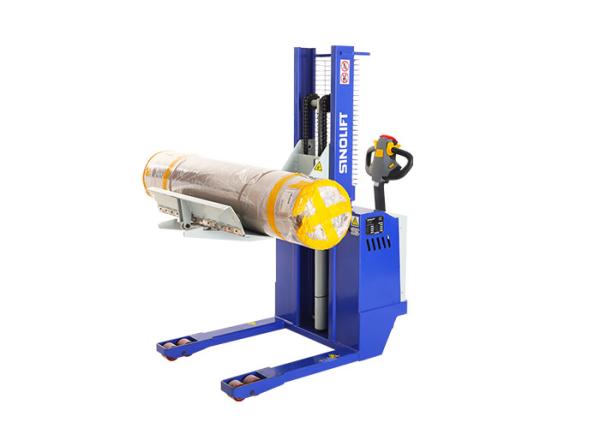

The SINOLIFT Reel Handling Trolley with powered traction and Auto-Tilting Craddle Lip. in addition to its high reliability and small dimensions, possesses all requirements needed for web handling and web feeding in rotary printing, flexographic, serigraphic, and cutting machines.
A wide range of construction variants allow to adapt the equipmet lay-out to any specific application.

Options
▲24-Volt D.C. power lift, AC Powered Lift, Pneumatic Lift or Air over Hydraulic Lift.
▲Scales with or without intrinsically safe indicators.
▲Reel presence limit switch.
▲Different lifting heights.
▲Any color finsished with epoxy powder coating.

Specification:

Model CDD1000-M700 CDD1500-M700
Power Electric Move and Lifting
Operator Type Walkie Walkie
Load Capacity kg 1000 1500
Available Reel Diameter D mm 800~1400 800~1400
Load Center mm 465 465
Service Weight (Include Battery) kg 364 390
Battery Weight kg 34 34
Drive Wheel mm 210 210
Front Roller mm Φ80*68 Φ80*68
Overall Length L mm 1388 1388
Overall Height H mm 1608 1608
Overall Width W mm 750 750
Wheelbase L1 mm 1245 1245
Lifting Height of Craddle h mm 1220 1220
Lowered Height of Craddle h1 mm 97 97
Craddle Size w1 mm 930*258 930*258
Min.Turning Radius mm 1200 1200
Travel Speed (no load/full load) km/h 4.5/3 4.5/3
Lifting Speed (no load/full load) mm/s 15/10 15/10
Lowwering Speed (no load/full load) mm/s 20/12 20/12
Exceeding Slope (no load/full load) % 10/4 10/4
Brake Emergency Electronmagnetic
Traverse Motor kw DC 1.0 DC 1.0
Lifting Motor kw 2.2 2.2
Battery Ah/V 60/24 60/24
Controller MOSFET MOSFET
Brand CURTIS CURTIS
DBS
