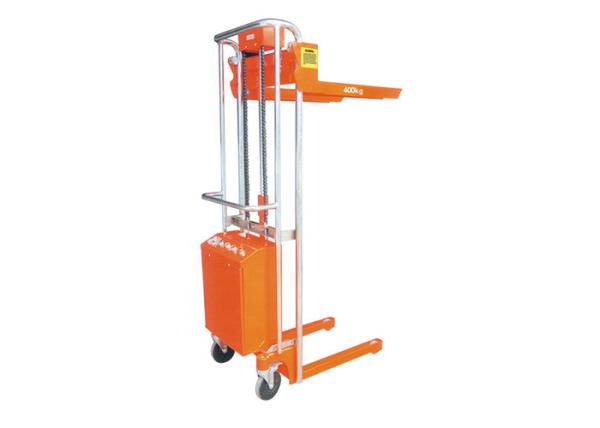

Overload Protection Semi Electric Hydraulic Mini Pallet Stacker Capacity 400Kg

Product Categories
Shanghai Sinolift Mechanical and Electrical Equipment Co., Ltd.
Contact Now

Overload Protection Semi Electric Hydraulic Mini Pallet Stacker Capacity 400Kg

Brand Name : Sinolift

Model Number : TFD

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : Overload Protection Semi Electric Hydraulic Mini Pallet Stacker Capacity 400Kg

Capacity : 400Kg

Overall Dimension : 1020X560X1080mm

Min. Fork Height : 80mm

Max. Fork Height : 1200mm

Fork Length : 650mm

Adjustable Fork Width : 235-500mm

Single Fork Width : 110mm

Chassis Height : 32.5mm

Power Pack Motor : 0.7KW

Battery : 12V/60Ah

Net weight : 90Kg

Contact Now

Feature:

1.Simple and easy operation.

2.Lifting movement via collapsible foot pedal.

3.Sensitive lowering through sinking valve.

4.Hand push drive.

5.Overload protection via pressure valve.

Specification:

Model TFD20-85 TFD20-120 TFD40-85 TFD40-120 TFD40-150
Capacity (kg) 200 200 400 400 400
Min. Fork Height (mm) 80 80 80 80 80
Max. Fork Height (mm) 850 1200 850 1200 1500
Fork Length (mm) 600 600 650 650 650
Adjustable Fork Width (mm) 215-500 215-500 235-500 235-500 235-500
Single Fork Width (mm) 100 100 110 110 110
Dia of Front Wheel (mm) ø75
Dia of Steering Wheel (mm) ø125
Chassis Height (mm) 32.5 32.5 32.5 32.5 32.5
Power Pack Motor (KW) 0.7
Battery (V/Ah) 12/60 12/60 12/70 12/70 12/70
Overall Length (mm) 1020 1020 1100 1100 1100
Overall Width (mm) 560 560 590 590 590
Overall Height (mm) 1080 1435 1060 1410 1710
Option Platform (mm) LP10(610 x 530) LP20(660 x 580)
Net weight (kg) 90 97 105 116 122
Minimum Qty. (pcs) 2 2 2 2 2
