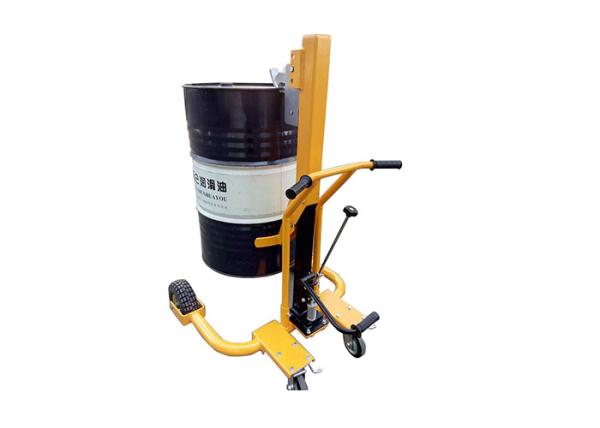

DY350B Portable Drum Handling Trolley Manual Oil Drum Lifter Loading Capacity 350kg

Name: DY350B Portable Drum Handling Trolley Manual Oil Drum Lifter Loading Capacity 350kg
Brand: Sinolift
Price: 1 USD

Brand Name : Sinolift

Model Number : DY350B

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 5000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : DY350B Portable Drum Handling Trolley Manual Oil Drum Lifter Loading Capacity 350kg

Type : U type with four wheels

Load capacity : 350kg

Lifting height : 450mm

Leg Width : 650(850)mm

Dia. of Front Wheel : Φ180×2mm

Dia. of Rear Whee : Φ150×2mm

Overall Size : 830×900×1080mm

Drum Size : 30~55gallon (Ø450x700mm~Ø572x900mm) steel, 210L plastic

Net Weight : 65Kg

Warranty : 1 year

Contact Now

Feature:

Multifunctional drum truck with new design and outstanding performance
High lift, heavy-duty and external oil cylinder provide conventient and durable operation
Adjustable olecranon; suitable for 30~55 gallon steel or 210L plastic drums
More suitable for rough land surface with elastic wheel and easy movement

Specification:

Model		DT350B	DT350B-1	DT350B-2
Capacity	kg	350	350	350
Drum Size	mm	30~55gallon (Ø450x700mm~Ø572x900mm) steel, 210L plastic
Lifting Height	mm	450	450	450
Leg Width	mm	650 (850)	650 (850)	650 (850)
Dia. of Front Wheel x Qty'	mm	Φ180×2	Φ180×2	Φ250×2 (with elastic)
Dia. of Rear Wheel x Qty'	mm	Φ150×2	Φ150×1	Φ150×2
Overall size	mm	830×900×1080	830×900×1080	900×940×1100
Net Weight	kg	65	63	68

DY350B Portable Drum Handling Trolley Manual Oil Drum Lifter Loading Capacity 350kg Images
