DT500-1 Electric Drum Handler Rated Capacity 500kg

Product Categories

Shanghai Sinolift Mechanical and Electrical Equipment Co., Ltd.

Contact Now

Name: DT5001 Electric Drum Handler Rated Capacity 500kg
Brand: Sinolift
Price: 1 USD

Brand Name : Sinolift

Model Number : DT500-1

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 sets/month

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : DT500-1 Electric Drum Handler Rated Capacity 500kg

Rated Capacity : 500kg

Net Weight : 228Kg

Max. Lifting Height : 1450mm

Lifting Speed : 120mm/s

Lifting Motor Power : 1.5KW

Overall Size(LxWxH) : 1500x950x2100mm

Leg Length : 630mm

Battery : 12V/120Ah

Warranty : 1 year

Contact Now

Feature:

- Eagle-grip structure, fit for transporting, stacking steel and plastic drums;

- With Scale, which can control pouring and measure capabilities, accuracy range: ±3‰;

- Optional weighing & print meter;

Specification:

Model		DT500-1
Rated Capacity	kg	500
Max. Lifting Height	mm	1450
Acceptable Drum Type		steel ,plastic,fiber
Powered Lifting	yes/no	yes
Drum Tilting (electric/manual)		without dumping device
With Weighing Scale	yes/no	yes
Lifting Speed	mm/s	120
Load Rollers Size	mm	Ø80x60
Steering Wheel Size	mm	Ø150x50
Size Between Legs(Inner/Out)	mm	630/810
Leg Length	mm	630
Turning Radius	mm	1750
Lifting Motor Power	KW	1.5
Battery	V/AH	12/120
Charger for Stacker	V	12
Charger for Weighing Scale	V	6
Overall Size(LxWxH)	mm	1500x950x2100
Net Weight	kg	228

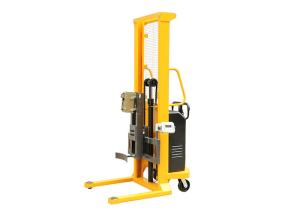

DT500-1 Electric Drum Handler Rated Capacity 500kg Images
